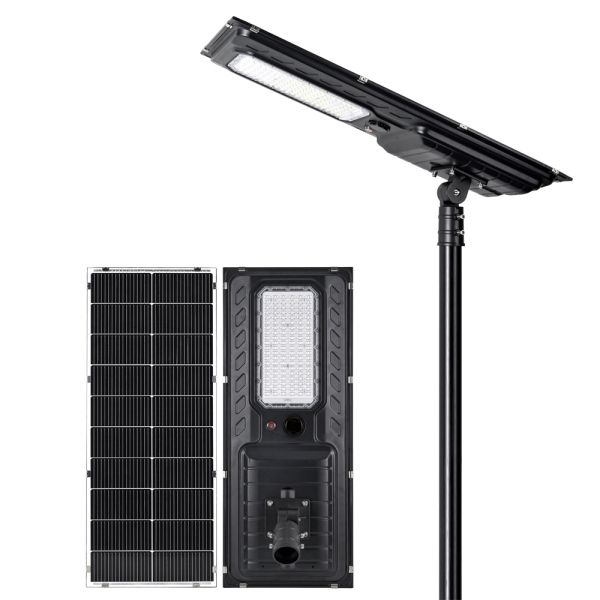

Solar Street Lamp Lithium Battery Commercial LED Solar Street Light
The 9th-generation all-in-one solar street lights, including the 3545 G9, 3965 G9, and 3980 G9 series, combine solar power generation, energy storage, and intelligent control. They are well-suited for various outdoor lighting scenarios, and the following is a detailed product overview.
1. 3545 G9 Series
1.1 Key Specifications
Power Output: 20W
Solar Panel: 5V/45W, with dimensions of 6773473MM
Battery: 3.2V/45Ah LiFePO4 battery (144Wh capacity)
LED Configuration: 60 pieces of 5050SMD LEDs, with a luminous efficacy of 180LM/W, color rendering index (C.R.I) ≥70, and color temperature options of 3000K-6500K
Optical & Physical Data: Beam angle of 90X150°, lamp size of 681351124MM
1.2 Core Functions
Energy Supply: Charging time ranges from 6 to 9 hours; provides 12 hours of lighting per night and can work continuously for 2-3 rainy days.
Motion Sensing: Detects human movement within a 120° range, switching to full brightness (20W); automatically reduces to 4W after 15 seconds of no human presence.
Durability: Features IK08 impact resistance and IP65 waterproof/dustproof performance, suitable for operating temperatures between -10℃ and 40℃.
Longevity: LED lifespan exceeds 54,000 hours; battery supports over 2,500 charge-discharge cycles; solar panel has a service life of 20-25 years.
Additional Features: Equipped with a remote control and a 180° rotatable bracket.
1.3 Application Scenarios
Ideal for rural roads, municipal roads, scenic areas, parks, residential communities, etc.
2. 3965 G9 Series
2.1 Key Specifications
Power Output: 25W
Solar Panel: 5V/68W, measuring 7973873MM
Battery: 3.2V/60Ah LiFePO4 battery (192Wh capacity)
LED Configuration: 90 pieces of 5050SMD LEDs, with a luminous flux of 4,500LM, luminous efficacy of 180LM/W, and C.R.I ≥70
Physical Size: 801391124MM
2.2 Core Functions
Energy & Sensing: Same charging and lighting duration as the 3545 G9 series; motion sensor switches brightness from 25W to 5W after 15 seconds of no human presence.
Durability & Longevity: Consistent with the 3545 G9 series in terms of impact resistance, waterproof performance, and component lifespans.
Additional Features: Comes with a remote control, customizable radar sensor, and supports multiple installation methods (pole mounting, roof mounting, wall mounting).
2.3 Application Scenarios
Applicable to rural roads, municipal roads, highways, scenic areas, outdoor basketball courts, etc.
3. 3980 G9 Series
3.1 Key Specifications
Power Output: 30W
Solar Panel: 5V/80W, with dimensions of 9573873MM
Battery: 3.2V/75Ah LiFePO4 battery (240Wh capacity)
LED Configuration: 120 pieces of 5050SMD LEDs
Installation & Size: Recommended mounting distance of 15-20M and height of 5-7M; lamp size of 961391124MM
3.2 Core Functions
Energy & Sensing: Matches the 3545 G9 series in charging and lighting duration; motion sensor adjusts brightness from 30W to 6W after 15 seconds of no human presence.
Durability & Longevity: Same impact resistance, waterproof performance, and component lifespans as the other two series.
Additional Features: Includes a remote control, customizable radar sensor, and supports multiple installation methods.
3.3 Application Scenarios
Suitable for large-area lighting needs, such as highways, scenic areas, large parks, etc.
4. Common Advantages
Integrated Design: Combines solar panel, battery, LED lamp, and controller into one unit, simplifying installation and reducing maintenance costs.
Energy Efficiency: Adopts high-efficiency solar panels and energy-saving LEDs, paired with intelligent dimming, to achieve excellent energy efficiency.
Eco-Friendliness: Relies on solar energy for power, reducing dependence on traditional grid electricity and lowering carbon emissions.
Versatile Installation: Supports multiple mounting methods for flexible deployment.
Warranty: All series come with a 2-year warranty for quality assurance.
